Inverted Premium Comp Coilovers - Mazda MX-6 1988-1992 (GD)
Inverted Premium Comp Coilovers - Mazda MX-6 1988-1992 (GD)
SKU:
Couldn't load pickup availability
FRONT | REAR | |
SPRING RATES | 12k | 10k |
UPPER MOUNT | Rubber OR Pillowball w/ Camber Plates | Aluminum w/ Hardened Rubber OR Pillowball |
STRUT DESIGN | Inverted | Inverted |
Application Note:
- Please choose your desired Front & Rear Upper Mounts (See note below)

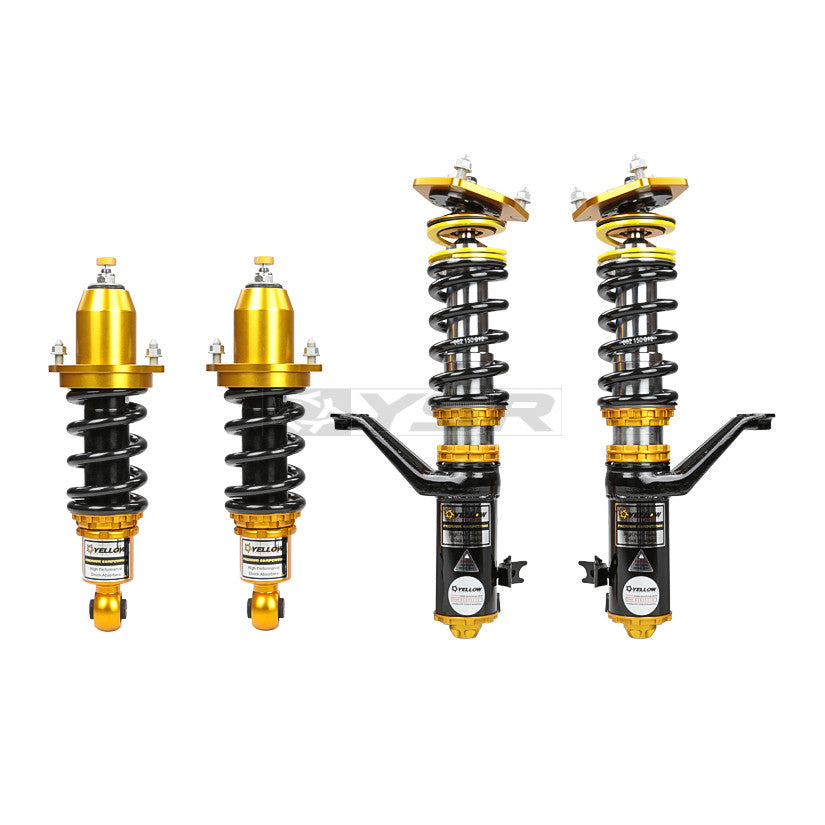

Our Inverted Premium Comp coilovers feature similar characteristics of our popular Premium Competition Coilovers, but with a 55mm inverted monotube front shock body to increase the strength & comfort of the suspension. We are constantly testing new features, improving our design, and testing these coilovers to make sure that our kit lives up to our customer's expectations.
This kit features an inverted monotube design to improve vehicle handling and comfort, while increasing the strength of the suspension. These kits offer additional shock fluid capacity to assist with heat dissipation and the larger shock body provides exceptional strength, which prevents premature failure of shafts seals. Our Inverted Dampers feature an aluminum ring seal to resist corrosion and damage from debris by providing a perfect seal.
Inverted Premium Comp Coilovers are designed to offer superior handling performance & predictability for frequent track use.
MONOTUBE INVERTED DESIGN
For suspension systems with front or rear MacPherson style struts, the damper will be provided with an inverted monotube design which is utilized to reduce the effect upon the damping oil and shock piston resulting from high temperature from the brake system. The inverted damper also can resist lateral stress more efficiently. The inverted damper reduces unsprung weight for quicker suspension response. For any suspension system with featuring a rear A-Arm suspension type, the rear damper shaft has been thickened to 20mm, which is able to support more side force stress, and ensure the vehicle will remain more controllable. In addition, the thickened damper shaft is more resistant to damage. The 55mm steel shock body is coated with a zinc plating for exceptional corrosion resistance.
33 LEVELS OF DAMPING ADJUSTMENT
Inverted Premium Competition Coilovers feature 33 levels of damping adjustment with the turn of a knob. Rebound & Compression Damping are controlled simultaneously. Inverted Dampers are adjusted from the bottom of the coilover.
REAR SUSTECH INVERTED DAMPER DESIGN
Some vehicle applications are unable to allow damping adjustment on the rear coilovers without coilover removal. With extensive testing & development, we now offer an improved rear dampening adjustment method for these vehicles. The Rear Sustech Inverted damper features a damping dial at the bottom portion of the coilover to allow simple adjustment without the need to remove any components. Sustech Inverted Dampers are included when applicable.
This suspension system comes standard with hardened rubber front upper mounts for a reduction in noise, vibration & harshness (NVH). We offer pillow ball upper mounts w/ camber plates as a performance alternative for customers. Please note that pillowball upper mounts w/ camber plates may cause a noise increase from the suspension. It is recommended to retain the rubber upper mounts for NVH reduction. No returns or exchanges will be offered due to noise from the suspension if ordered with pillowball upper mounts.
High quality components are adopted to ensure product durability and stability. Each application is test fit and completely road tested to guarantee perfect performance and comfort.
Please note that ALL of our coilovers are hand built and made to order. Please allow 2-3 weeks for delivery.
**Photographs shown are stock photos; Actual items may vary in appearance or features. Please contact us for specific features of each kit.
